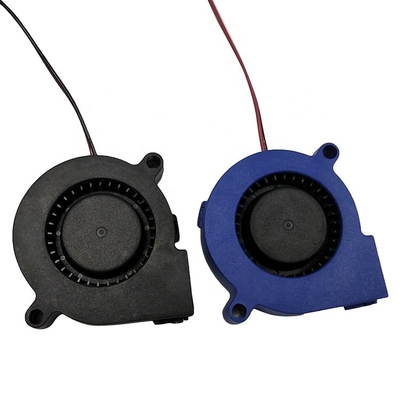

Low Noise Factory 2 3V 5V 12V 24V Mini Wire Air Cooling DC Blower Centrifugal Fan

3000 Pieces
MOQ
Low Noise Factory 2 3V 5V 12V 24V Mini Wire Air Cooling DC Blower Centrifugal Fan
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops
Blade Material: Plastic
Mounting: Screw fixed
Power: 3.6 W
Voltage: 24 V
Air Volume: 3.01 CFM (0.11m3/min)
Warranty: 1 Year
After-sales Service Provided: Online support
Zertifizierung: ce, RoHS
Product: Centrifugal blower fan
Bearing: Sleeve/Hydraulic/2-ball
Life time: 15000-50000hrs
Protection level: IP44 (Moisture-proof)
Operating voltage range: 15 to25.5VDC
Operating temperature: -10℃ to 60℃
Noise: 39.0dB-A
Weight: 28g
Option: PWM/FG/RD
OEM: Accepted
Grundinformation
Zertifizierung: ce, RoHS
Zahlung und Versand AGB
Packaging Details: Carton package
Supply Ability: 800000 Piece/Pieces per Month Centrifugal blower fan
Produkt-Beschreibung
DC Blower Fan

Applications

3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.

Introduction

1. Bearing Type: High precision Sleeve or Ball bearing
2. Frame & Impeller: Termoplastic PBT UL 94V-0
3. Operating Temperature: -10℃ ~ 60℃
4. Waterproof Grade: IP44
5. Insulation Grade: Standard grade is B grade
6. Motor: DC brushless motor
8. Fan Rotation: standard Clockwise (If need Counterclockwise, please tell us)
9. Lead Wire: Standard RED: Positive(+); BLACK: Negative(-) Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
10. Protection: Reverse protection; Auto Re-start protection.
11. Certification: CE, RoHS

Model
Rated
Voltage
Operating Voltage Range
Rated
Current
Rated Input Power
Speed
Max
Air Flow
Max Static
Pressure
Noise
VDC
VDC
Amp
Watt
R.P.M
m3/min
/ CFM
mmH2O
/ INH2O
dB-A
SF5015S/BL
12
6to13.5
0.06
0.72
3000
0.06 /2.39
7.12 /0.33
30.0
SF5015S/BM
12
6to13.5
0.12
1.44
4000
0.08 /2.76
9.49 /0.38
35.0
SF5015S/BH
12
6to13.5
0.18
2.16
5000
0.11 /3.01
11.86 /0.43
39.0
SF5015S/BL
24
15to25.5
0.05
1.20
3000
0.06 /2.39
7.12 /0.33
30.0
SF5015S/BM
24
15to25.5
0.10
2.40
4000
0.08 /2.76
9.49 /0.38
35.0
SF5015S/BH
24
15to25.5
0.15
3.60
5000
0.11 /3.01
11.86 /0.43
39.0

REMARKS


1. "S" for Sleeve bearing; "B" for 2 ball bearing
2. SFxxxxS/BL is two models, SFxxxxSL, SFxxxxBL
3. Features: Reverse protection; Auto Re-start protection
4. Optional functions: PWM/FG/RD
5. OEM: label, voltage, speed, wire length, wire connector, etc.
6. Certificate: CE, RoHS, ISO9001, etc.

FAQ

Q1: Are you a factory or trading company ?
A1: We are a factory.

Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.


Q3:How about the lifetime of fan?
A3:

Bearing type
Lifetime
Sleeve Bearing
20000 hours
Hydraulic Sleeve Bearing
30000 hours
Dual Ball Bearing
50000 hours

Q4: What effects the quoted price for the fan?

1 size of the fan, 2 voltage, 3 current,
4 speed, 5 air flow, 6 noise,
7 bearing type, 8 two wire or three wire, 9 cable length,
10 connector type, 11 function, 12 quantity
