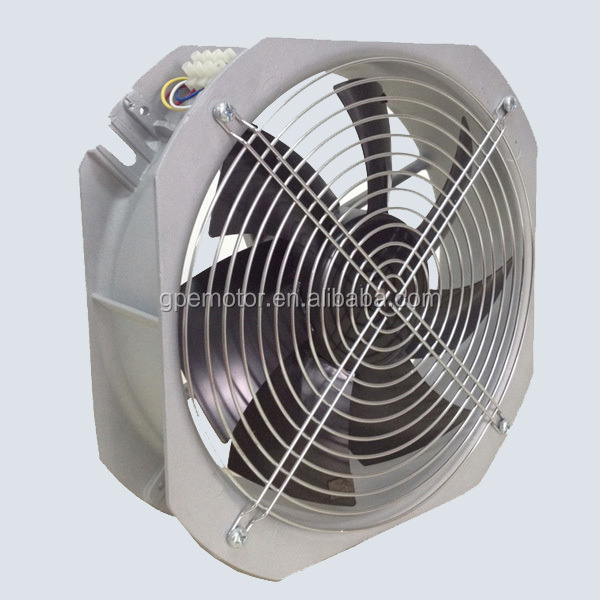

Stainless Steel 250mm Tele Axial DC Fan

Electrical Parameters

Motor

External rotor brushless DC motor

Insulation Class

Class "B"

Motor Protection

Locked rotor protection & Reverse Polarity protection

soft start & Automatic restart capability

Speed Control

0~10VDC / PWM Input

Type of protection

IP42

Operation Mode

S1

Direction of Rotation

Clockwise, seen on rotor

Dielectric Strength

5mA max. at 1500VAC 50Hz/s between frame and (+)terminal

EMC

EMC EN61000-6-3; EN 61000-6-1; EN61000-6-2/3

Mechanical Parameters

Impeller Dimension

Φ250mm

Material of Housing

Die-Cast aluminum

Mounting Position

Any

Specification

Item Code:  A1SE250D

Rated
Voltage

Frequency
(Hz)

Rated
Current(A)

Input
Power(W)

Speed
(RPM)

Air Flow
(CFM)

Air Flow
(m3/h)

Static Pressure
(Pa)

Noise
dB(A)

Net Weight      (Kg)

24/48V

/

≤4.62/2.2

108/105

2750

1129

1920

230

60

2.6

Outline Drawing

GND

Customized Motor and Fan Solutions

All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and  components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times.
