Eigenschaften

Technische Daten

Type: Centrifugal Fan, Centrifugal Fan

Applicable Industries: Restaurant, Home Use, kitchen

Customized support: OEM, ODM, OBM

Electric Current Type: DC

Blade Material: Cast Iron

Mounting: Duct Fan, FREE STANDING

Model Number: 4A

Voltage: 380v

Warranty: 1 Year

After-sales Service Provided: Video technical support

Product name: low noise multi-vane centrifugal fan

Inlet size:: 180/220/240

Outlet size: 194/226/254

Total pressure: 550pa-430pa

Usage: Industrial Exhaust Ventilation

Advantage: Convenient Installation

Motor: AC Motor

Function: Dust Exhaust

Grundinformation

Model Number: 4A

Zahlung und Versand AGB

Packaging Details: Plywood crate with polyfoam lining, packing by wooden box.

Supply Ability: 10000 Set/Sets per Month

Produkt-Beschreibung

Company Introduction

Product Description

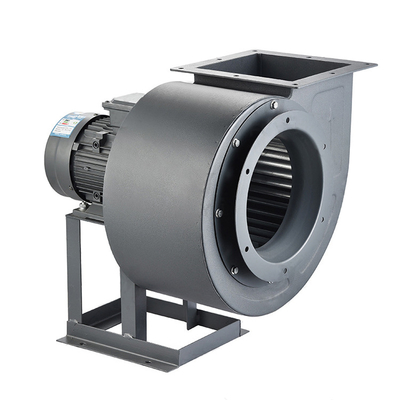

Model 11-62 low noise multi-vane centrifugal fan has been degigned and produced accoring to the requirements from the increasingly developing purification industry and environmental protection and noise decrease. The fan adopts the multi-purpose optimized designed schemes in aspects of noise, efficiency. Various pneumatic parameters. It fulfills the inest over-rall frame performance matching, it has sound pneumatic persormace. It is widely applicable for kitchen exhaust, range hood or ventilation, air-exchange i n the public places such as the unit canteens, guesthouses, restaurants, eating establishments etc. It is fit for use in the production equipments such as grain; chemical; plastic machineries and so on.

Details Images

Strong and nice-looking shell body

Thickened steel plate housing, it is welded into whole structure, the appearance adopts powdwe coating technology, so the fan has the features of strong, smooth, anti-oil and easy clean.

High quality pure copper motor

Use superior high temperature resistance pure copper motor core, ensure motor efficiently and safety operating.

Double wine wheels and thickened steel plate blades

Strong, not easy deform, the paddle-wheel, pulley have been implemented with stric static, dynamic balancing correction, and there're double wine wheels, there're features as low noise, anti-dust, anti-corrosion, rust-proof and smoonth running.

Stable and thickened bracket

The power supply will automatically disconnect when the door is opened, hence to ensure the safety.

Product Parameters

Model No.	Voltage (v)	Rated power (w)	Speed (r/min)	Flow Rate (m3/h)	Wind Pressure (Pa)	Noise (dB)
2.8A	220	0.75~4	1450	2300~5200	350~400	60
2.8A		380	0.75~4	1450	2300~5200	350~400	60
3A	220	1.5~4	1450	2338~6227	670~508	62
3A		380	1.5~4	1450	2338~6227	670~508	62
3.2A	220	2.2~4	1450	3338~6800	770~508	71
3.2A		380	2.2~4	1450	3338~6800	770~508	71
3.5A	380	1.1~6	960	3338~4610	350~230	68
		220	3~4	1450	4504~9882	770~508	76
		380	3~4	1450	4504~9882	770~508	76
4A	380	3~6	960	4620~11800	550~430	75
4.5A	380	4~6	960	8680~17878	815~616	76
5A	380	5.5~6	960	9876~19250	923~645	77
6A	380	7.5~6	960	11600~20894	1200~990	78
6A		380	11~6	960	18600~28000	1450~980	78

Application &Installation

FAQ

Q: Are you the factory or trading company?

A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.

Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.

Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.

Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.

Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.

Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
